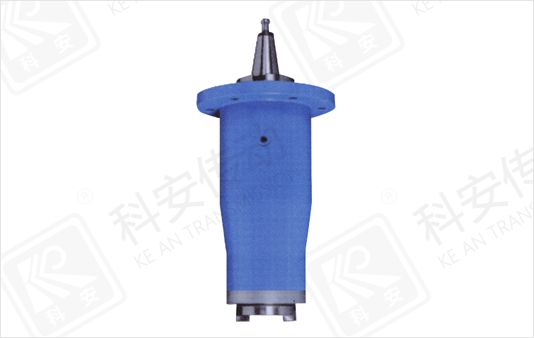

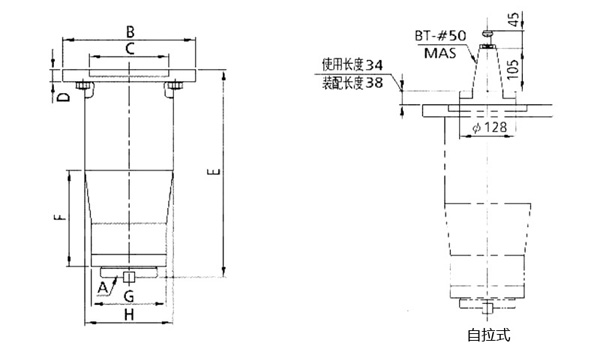

KA-E73/75 Axtension Milling Head
 |
 |
 |
|
Ka-E73/75 Extension Milling Head |
|
Case |
| Model/Size | A | B | C | D | E | F | G | H | Type Of Machine Used | Maximum Speed | Maximum Torque |
| E73N | IS0-50 | Φ250 | Φ150 | 25 | 305 | 184 | 170 | 190 | V7, U12, T10 | 800/2000/3000rpm | 1500N-m |
| E75N | IS0-50 | Φ300 | Φ180 | 30 | 505 | 234 | 170 | 200 |
U60, U61, U70, U71 |

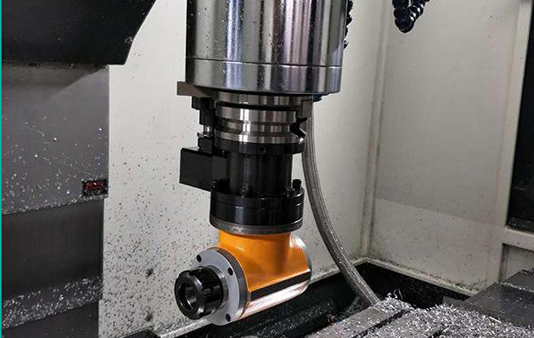

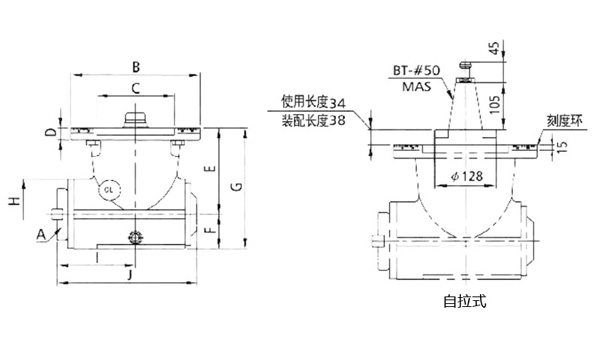

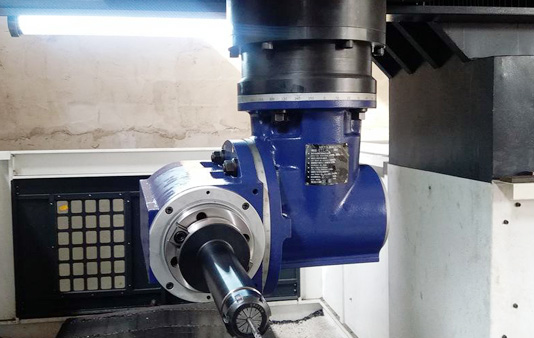

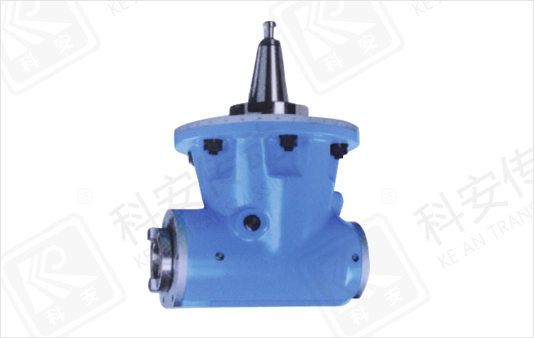

KA-N75C/N76 Right Angle Milling Head
KA-N75C/N76 Right Angle milling head
Case
| Model/Size | A | B | C | D | E | F | G | H | I | J | Type Of Machine Used | Maximum Speed | Maximum Torque |
| N75C | IS0-50 | Φ300 | Φ180 | 32 | 215 | 85 | 300 | 173 | 182 | 325 |
U60, U61, U70, U71 |
20003000rpm | 1500N-m |
| N76 | IS0-50 | Φ360 | Φ220 | 35 | 265 | 96 | 361 | 216 | 216 | 404 | 800/2000rpm | 2500N-m |

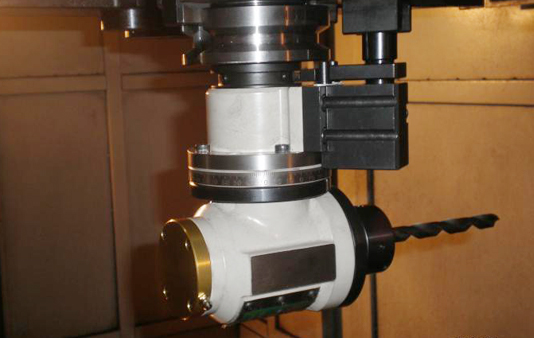

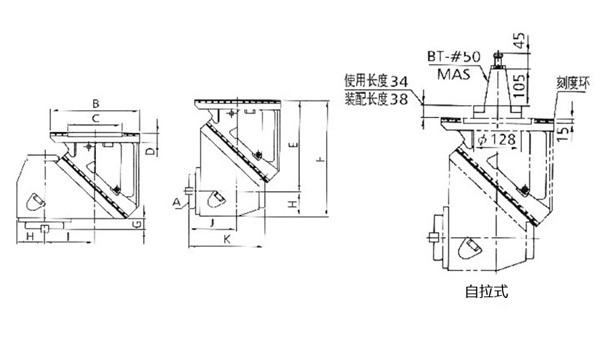

KA-C45/C50 Universal Iron Head
|
|
|
 |
|
Ka-C45/ C500 Universal Iron Head |
|
Case |
| Model/Size | A | B | C | D | E | F | G | H | I | J | K | Type Of Machine Used | Maximum Speed | Maximum Torque |
| C45 | IS0-50 | Φ250 | Φ150 | 25 | 276 | 363 | 39 | 88 | 130 | 154 | 250 | V7, U12, T10 | 1200/200/3000rpm | 1200N-m |
| C50 | IS0-50 | Φ300 | Φ180 | 35 | 341 | 434 | 39 | 93 | 144 | 166 | 265 | U60, U61, U70, U71 | 1200rpm | 1500N-m |
